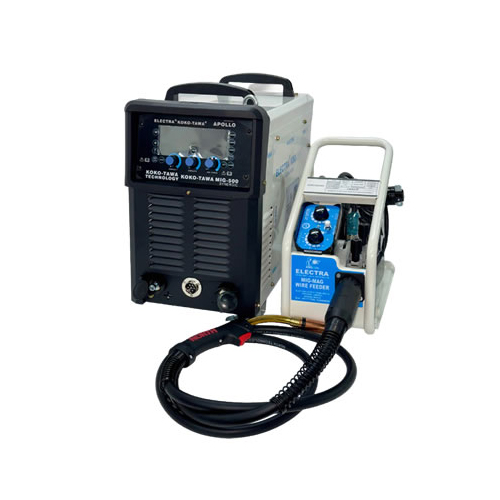

KOKO-TAWA MIG-500S
Revolutionizing Welding Efficiency with Japanese Technology
The KOKO-TAWA MIG-500S SYNERGIC is designed for heavy-duty industrial applications, delivering unparalleled performance, precision, and reliability. Featuring cuttingedge Japanese technology, this 500A machine with a 100% duty cycle ensures continuous operation and superior weld quality, making it the ultimate choice for professionals.
Key Features
- 500A Output:
- High-current capacity for thick metal welding.
- 100% Duty Cycle:
- Enables continuous operation without overheating.
- Synergic Control:
- Automated wire feed and voltage adjustment for optimal performance.
- Japanese Technology:
- Advanced Koko-Tawa inverter design for superior efficiency.
- High-Frequency Arc Start:
- Smooth and spatter-free welding starts.
- Digital Display:
- Real-time monitoring of voltage, current, and error codes.
- Robust Construction:
- Built to withstand the toughest industrial environments.
Technical Specifications
| Category | Details |
|---|---|
| Welding Power Source | KOKO-TAWAⓇ Inverter Multi-Function MIG/MAG Welder |
| Model | KOKO-TAWA MIG-500S SYNERGIC with Memory Function |
| Input | Rated Voltage & Frequency: 415VAC, 50Hz (Three-phase without middle line) Allowable Range: Voltage: 320V–450V; Frequency: 40–60Hz |
| Output | No-Load Voltage: 80V MIG Output: 500A / 39V MMA Output: 500A / 40V Duty Cycle: 500A @ 100% (Ambient temperature: 40℃) Voltage Change Rate: < ±5% (Cold/hot state & input fluctuation within ±10%) Output Feature: CV (Constant Voltage) / CC (Constant Current) Voltage Range: 12–45V Current Range: 30–500A |
| Arc Ending | Voltage: 12–45V Current: 30–500A |
| Main Features | Digital Display: Voltage, current, error codes, and control parameters Gas Type: CO₂, Ar, Mixed Wire Types: Solid/flux-core (MS, SS), aluminum alloys, silicon bronze, electrode Wire Diameters: 0.8, 0.9, 1.0, 1.2 mm Modes: Synergic, Individual Welding Controls: 2-step, 4-step, special 4-step, spot welding Other Functions: Gas detection, inching wire feed, arc feature adjustment Spot Welding Time: Adjustable (0.1–10s) Memory: Store, recall, and lock welding parameters |
| Protection | Over-voltage, under-voltage, overheat, over-current protection |
| Environmental | Operation Temp: -10℃–40℃; Reduced capacity up to 50℃ Humidity: Up to 75% RH @ 40℃, 95% RH @ 20℃ (no condensation) Storage Temp: -40℃–70℃ Vibration: < 200Hz, < 1.0 m/s² |
| Structure & Cooling | Protection Degree: IP21S Cooling Method: Forced air cooling Insulation Class: H |
| Dimensions & Weight | Dimensions (L × W × H): 647 × 296 × 572 mm Weight: Approx. 50.5 Kg |
Accessories
- TORCH 36KD.
- Wire feeder with 4 mtr connection cable.
- CO2 Gas Regulator.
- CO2 Heater.
- Electrode holder with cable.
- Earth clamp with cable.
- Hose pipe with clamps.
Advantages
- Increased Productivity : Operate continuously without interruptions, thanks to the 100% duty cycle.
- Improved Weld Quality : Synergic control ensures precise wire feed and voltage matching.
- Energy Efficiency : Advanced inverter technology reduces power consumption.
- Enhanced Safety : Features thermal overload protection and arc fault detection.
- Ease of Use : Intuitive digital interface with automated settings for effortless operation.
- Versatile Compatibility : Suitable for welding Mild Steel (MS), Stainless Steel (SS), and Aluminum.
Benefits
- Efficient High-Volume Production : Boost output with continuous operation.
- Consistent Weld Quality : Achieve professional-grade results every time.
- Reduced Production Costs : Save on energy and maintenance.
- Increased Operator Safety : Work confidently with built-in protections.
Applications
- Heavy Fabrication and Construction.
- Automotive and Machinery Manufacturing.
- Shipbuilding and Repair.
- General Industrial Welding.
